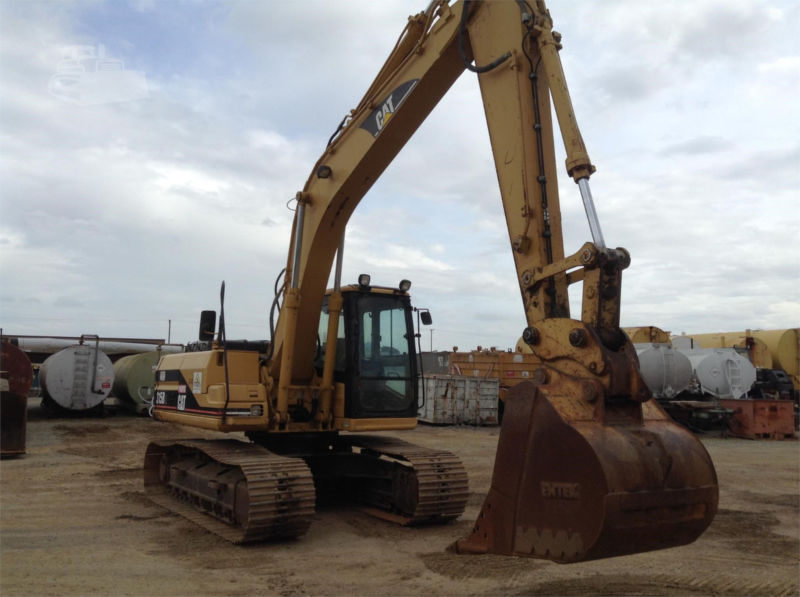

Excavator 2001 Caterpillar 315BL / Cat

Caterpillar 315BL 2001 Model very good condition. Description CAB/AC, Quick Coupler, Bucket, Aux Hydraulics Specifications Year : 2001 Manufacturer : CATERPILLAR Model : 315BL Condition : Used Hours : 4,789h Specification Engine Make Caterpillar Model 3046T Gross Power 102 hp 76.1 kw Net Power 99 hp 73.8 kw Power Measured @ 2100 rpm Displacement 305 cu in 5 L Aspiration Turbocharged Number of Cylinders 4 Operational Operating Weight 36200 lb 16420 kg Fuel Capacity 74 gal 280 L Cooling System Fluid Capacity 5 gal 19 L Hydrauilc System Fluid Capacity 49.7 gal 188 L Engine Oil Capacity 3.4 gal 13 L Swing Drive Fluid Capacity 0.79 gal 3 L Operating Voltage 24 V Alternator Supplied Amperage 50 amps Hydraulic System Relief Valve Pressure 4980 psi 34335.9 kPa Hydraulic Pump Flow Capacity 69.7 gal/min 264 L/min Swing Mechanism Swing Speed 10.1 rpm Swing Torque 28420 lb ft 38532.3 Nm Undercarriage Shoe Size 23.6 in 600 mm Ground Pressure 5.8 psi 39.6 kPa Max Travel Speed 3.4 mph 5.5 km/h Drawbar Pull 29480 lb 131.1 kN Track Gauge 6.5 ft in 1990 mm Buckets Reference Bucket Capacity 0.64 yd3 0.49 m3 Minimum Bucket Capacity 0.48 yd3 0.37 m3 Maximum Bucket Capacity 1.1 yd3 0.83 m3 Boom/Stick Option (HEX) 1 Boom/Stick Option (HEX) 1 boom w/ stick 1850mm Max Digging Depth 17.4 ft in 5310 mm Max Reach Along Ground 26.4 ft in 8040 mm Max Cutting Height 27.9 ft in 8500 mm Max Loading Height 19.5 ft in 5930 mm Max Vertical Wall Digging Depth 14.4 ft in 4400 mm Boom/Stick Option (HEX) 2 Boom/Stick Option (HEX) 2 Boom / Stick 7'5" (2250mm) Shipping Height of Unit 9.1 ft in 2780 mm Shipping Length of Unit 27.8 ft in 8470 mm Max Digging Depth 18.7 ft in 5705 mm Max Reach Along Ground 27.6 ft in 8420 mm Max Cutting Height 28.7 ft in 8735 mm Max Loading Height 20.2 ft in 6150 mm Max Vertical Wall Digging Depth 16.2 ft in 4930 mm Boom/Stick Option (HEX) 3 Boom/Stick Option (HEX) 3 Boom / Stick 8'6" (2600mm) Shipping Height of Unit 9.4 ft in 2860 mm Shipping Length of Unit 27.9 ft in 8500 mm Max Digging Depth 19.9 ft in 6055 mm Max Reach Along Ground 28.7 ft in 8740 mm Max Cutting Height 29.2 ft in 8910 mm Max Loading Height 20.7 ft in 6320 mm Max Vertical Wall Digging Depth 17.5 ft in 5335 mm Boom/Stick Option (HEX) 4 Boom/Stick Option (HEX) 4 Boom / Stick 10'2" (3100mm) Shipping Height of Unit 9.8 ft in 2990 mm Shipping Length of Unit 28 ft in 8520 mm Max Digging Depth 21.5 ft in 6555 mm Max Reach Along Ground 30 ft in 9140 mm Max Cutting Height 29.4 ft in 8970 mm Max Loading Height 21 ft in 6410 mm Max Vertical Wall Dig Depth 18.3 ft in 5570 mm Dimensions Width to Outside of Tracks 8.5 ft in 2590 mm Height to Top of Cab 9.4 ft in 2880 mm Ground Clearance 1.5 ft in 460 mm Counterweight Clearance 3.4 ft in 1050 mm Tail Swing Radius 8 ft in 2450 mm Length of Track on Ground 10.4 ft in 3170 mm
