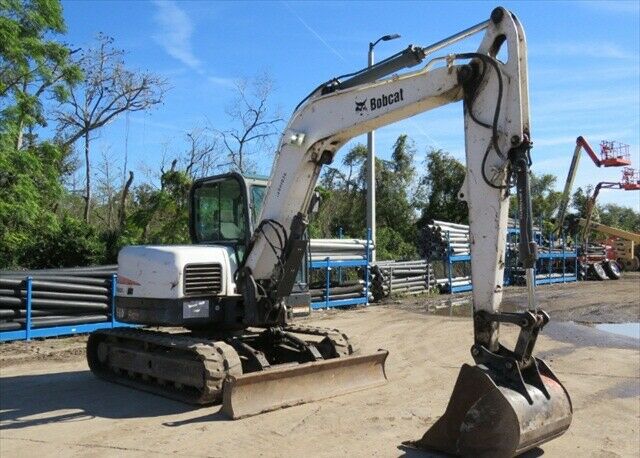

Bobcat E80 Mini Excavator

Location:
United States, Florida, Daytona Beach
Ships to:
Worldwide
Aux Hydraulics Heat And Ac Enclosed Cab
Current Price:
 $12,322
Quantity:
1
Condition:
Used
Listing Type:
Chinese
Make:
Bobcat
Model Year:
2012
Hours:
3743
Model:
E80
Operating Weight:
18,001 - 19,000 lbs
Net Horsepower (HP):
57
Item's Postal Code:
321**

Modified Item: No

Custom Bundle: No

MPN: Does Not Apply

Equipment Type: Mini Excavator

Payment Methods:
See item description
Condition Description:
Condition is perfect!
Description:

The excavator is in a perfect working condition. Nothing needs to be addressed, has no leaks or smoke. The excavator was never abused and it was regularly serviced. Here is a detailed list of specifications for this excavator: Operational SpecificationsOperating Weight - Canopy, standard arm, rubber tracks, bucket 18689 lb (8477 kg) Working RangeA. Maximum Blade Height - 17.6" (446 mm) B.

Maximum Blade Depth - 12.0" (304 mm) C. Maximum Working Equipment Radius, arm retracted - 106.3" (2700 mm) D. Maximum Radius of Work Equipment - 294.5" (7480 mm) E. Maximum Bucket Tooth Height - 278.3" (7070 mm) F. Maximum Dump Height - 200.2" (5085 mm) G.

Maximum Depth of Vertical Wall Dig Depth - 146.9" (3730 mm) H. Maximum Dig Depth - 184.0" (4675 mm) I. Swing Clearance, Rear of Upperstructure - 51.1" (1298 mm) Tail Swing Overhang - 5.8" (148 mm) DimensionsA. Clearance, Upperstructure to Groundline - 29.0" (737 mm) B. Minimum Radius in Transport Position - 188.8" (4797 mm) C.

Overall Length in Transport Position - 242.8" (6167 mm) D. Blade Height - 17.6" (446 mm) E. Length of Track on Ground - 86.6" (2200 mm) F. Machine Centerline to Blade - 75.3" (1912 mm) G. Overall Length of Track Assembly - 111.1" (2823 mm) H.

Canopy / Cab Height - 106.3" (2700 mm) I. Track Width (rubber) - 17.7" (450 mm) J. Blade Width, Standard Blade - 90.6" (2300 mm) PerformanceArm Breakout Force - Std 7659 lb-f (34068 N)Bucket Breakout Force - 12280 lb-f (54623 N)Travel Speed - Low Range - 1.8 mph (2.9 km/hr)Travel Speed - High Range - 2.9 mph (4.6 km/hr)Boom Swing - L / R - 70 ⁰ L / 55⁰ RSlew Speed - 9.8 rpm CapacitiesFuel Tank - 29.1 gal (110.0 l)Cooling System - 2.6 gal (10.0 L)Engine Oil & Filter - 12.3 qts. (11.6 L)Hydraulic Tank - 23.0 gal (87.0 L) Hydraulic SystemPump Type / Number - Piston-Variable Displacement, Load Sensing Pump Capacity - 43.8 gpm (166 L/min) System Relief Setting - 4279 psi (295 Bar) Auxiliary Relief - 3046 psi (210 Bar) Auxiliary Flow, Primary - 31.7 gpm (120.0 L/min) Slew Motor - Axial Piston Motor with Planetary Gear Reduction Drive Motors - Axial Piston Motor with Two Stage Planetary Gear Reduction Engine & ElectricalEngine Make / Model - Yanmar/4TNV98-ZWDB8 Fuel / Cooling - Diesel / Liquid (Propolyene Glycol & water mixture) Horsepower @ rated RPM- 57.0 HP (42.5 kW) @ 2200 rpm Horsepower (Net) - 53.5 HP (39.9 kW) @ 2200 rpm Torque, @ Rated RPM - 164.5 ft-lb (223 Nm) @ 1200 rpm Number of Cylinders - 4 Displacement - 202.5 cu. In. (3.32 L) Crankcase Ventilation - Closed Breather Lubrication - Pressure System w/ Filter Oil Filter - Cartridge Type - Full Flow Air Filter - Dual Element, Dry Replaceable Paper Cartridge Alternator - 12V - 60A Battery - 12V - 750 CCA @ 0⁰F (-18 C) Starter - 12V - 4.0 HP (3.0 kW) w/ Gear Reduction ServiceabilityAccess is available to the following through the rear or side hood: - Air cleaner - Battery - Cooling system (engine oil and hydraulic oil coolers) for cleaning - cores seperable for cleaning purpuses - Engine oil check, oil fill, and oil filter - Radiator, oil cooler and, if equipped, AC coil - Sight gauge for hydraulic oil level - Starter Rear hood and side hood shall have provision for locking Central Grease point for slew bearing, slew pinion, offset cylinder Standard FeaturesAuto-IdleAuxiliary Hydraulics - w/ Quick CouplersBoom Load Holding ValveBoom SwingControl Console LocksControl Pattern Selector Valve (ISO/STD)Dozer BladeEnclosed Cab with Heater and Air Conditioning- Includes: Retractable Seat Belt- Cloth Suspension Seat wqith High Back- MirrorHornHydraulic Joystick Controls Rubber Tracks Spark Arrestor Muffler Two Speed Travel Warranty - 12 Months Work Lights Options/AccessoriesAM/FM RadioBeacon LightHydrualic ClampKeyless StartSecondary Auxiliary HydraulicsSpecial Applications Kit/FOGS Level II- Top and Front GuardSteel TracksStrobe LightTravel Motion Alarm ControlsEngine starting: Key type ignition switch with key shut down Engine Speed control: Rotary Dial with auto-idle feature Vehicle Steering: Direction and speed controlled by two hand levers or foot pedals Excavator Functions: Two hydraulic joysticks control boom, arm, bucket & slew functions.

Foot pedals control auxiliaries & boom swing. Blade is controlled by separate lever Service Brake (travel): Hydraulic lock on motor Parking Brake (travel): Hydraulic Lock on motor Service Brake (slew): Hydraulic lock on motor Holding Brake (slew): Automatically applied slew brake integrated in motor
