Equipment Type: Mini Excavator

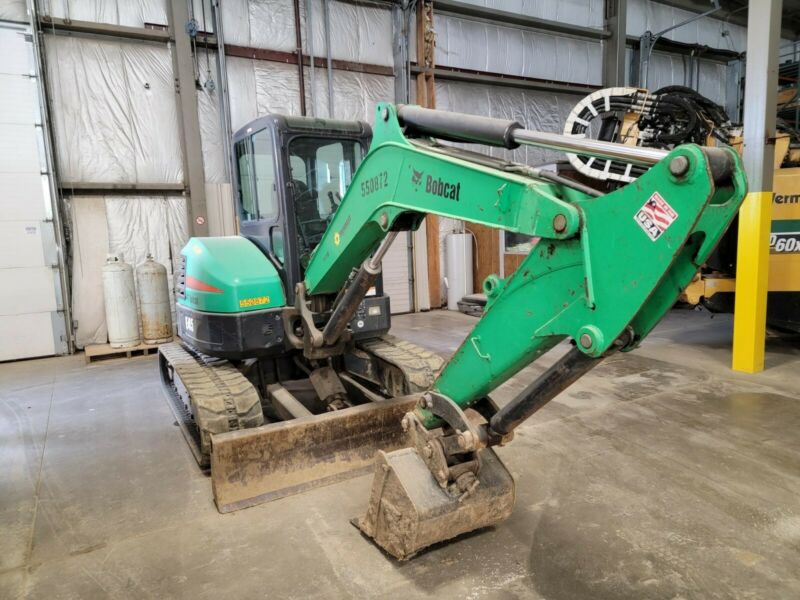

USED - Unit has sat for a year. Operates as intended but likely needs a service. 20" Bucket. Has Backfill blade attachment and Cab. Please see photos for any required details and feel free to message on classifieds board with any specific questions and I will find out for you!
Standard Features 1960 mm dozer blade 400 mm rubber tracks Auto idle Auxiliary hydraulics with quick couplers Blade float feature Cab light Clamp ready Control console locks Cupholder Engine/hydraulic monitor with shutdown Fingertip auxiliary and offset hydraulic control Horn Hydraulic joystick controls Lockable storage compartment Radio/MP3 ready Retractable seat belt Suspension seat with high back * TOPS/ROPS cab with heating Two-speed travel Work lights (boom and upperstructure) Warranty: 12 months, 2000 hours (Whichever occurs first) Weights Operating weight with ROPS canopy — kg Operating weight with ROPS cab 4634 kg Additional weight for cab with heating — kg Additional weight for cab with HVAC 140 kg Additional weight for steel tracks 131 kg Additional weight for long dipperstick 216 kg Engine Make / model Kubota / V2403-M-DI-E3B-BC-5 Fuel / Cooling Diesel / Liquid, forced circulation Bore / Stroke 87.1 mm / 102.4 mm Maximum net power at 2450 RPM (SAE J1995) 30.2 kW Maximum net torque at 1400 RPM (SAE J1995) 152.7 Nm Number of cylinders 4 Displacement 2.433 l Performance Digging force, standard dipperstick 25700 N Digging force, long dipperstick 23700 N Digging force, bucket 35800 N Drawbar pull 40447 N Ground pressure with standard dipperstick and rubber tracks 25.4 kPa Ground pressure with standard dipperstick and steel tracks 26.1 kPa Ground pressure with long dipperstick and rubber tracks 26.6 kPa Ground pressure with long dipperstick and steel tracks 27.3 kPa Travel speed, low range 2.4 km/h Travel speed, high range 4.2 km/h Maximum digging depth, standard dipperstick 3300 mm Maximum digging depth, long dipperstick 3600 mm Hydraulic System Pump type Single outlet variable displacement, load sensing torque limited pump Piston pump capacity 99.1 l/min Auxiliary flow 75.7 l/min Port relief pressure for boom, bucket and dipperstick circuits 290 Bar Fluid Capacities Cooling system 8.3 l Engine lubrication plus oil filter 7.1 l Fuel reservoir 79.9 l Hydraulic reservoir 15.1 l Hydraulic system with bucket and dipper cylinder retracted, bucket on the ground, and blade down 54.9 l Controls Steering Direction and speed controlled by two pilot-operated hand levers or two foot pedals Auxiliary hydraulics Electric switch in right joystick (left joystick for 2nd auxiliary) Slew System Boom swing, left 75° Boom swing, right 50° Slew rate 9.0 RPM Traction Track width 400 mm Gradeability 30°
